C Band LNB / Filter























FREQUENCY BANDS
Frequency Band 3700-4200 MHz
L.O. Frequency 5.15 GHz
IF Frequency 950 – 1450 MHz
ELECTRICAL SPECIFICATIONS
Noise Temperature 35˚K
L.O. Stability @+25°C ±100 KHz (Max.)
L.O. Stability @-30°C～+70°C ±150 KHz (Max.)
Phase noise @1KHz offset -50 dBc/Hz
Phase noise @10KHz offset -80 dBc/Hz
Phase noise @100KHz offset -95 dBc/Hz
Output VSWR 2.5 : 1 max.
Conversion gain 60 dB min.
Gain Variation 7 dB max.
Output P1dB Compression Point 0 dBm min.
Crosstalk Isolation 18 dB min.
Output Spurious -60 dBc max.
Radiated Interference -45 dBm max.
DC power 10-20V
Current 110 mA max.
Operating temperature -30˚C to +70˚C
Storage temperature -45˚C to +85˚C
MECHANICAL SPECIFICATIONS
Input (waterproof) CPR 229G waveguide grooved
Output (waterproof) F-Connector (75 Ohm)
Dimensions (LxWxH) 178.5x98.8x70 mm
Packing Size (LxWxH) 185x107x75 mm
Weight 500 g

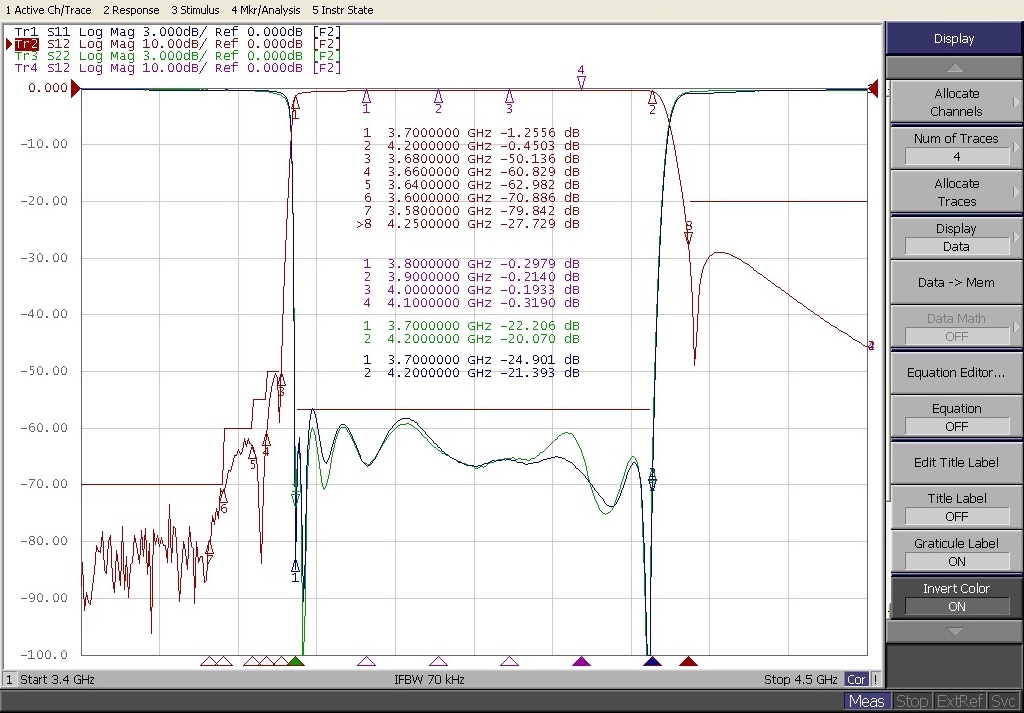

C Band Filter

Pass Band 3.7-4.2 GHz
















ELECTRICAL SPECIFICATIONS
Frequency Range 3700-4200 MHz
Return Loss ≥16 dB
Insertion Loss ≤1.4 @ 3700 MHz
≤0.6 @ 4200 MHz
≤0.3 @ 3800, 3900, 4000, 4100 MHz
Rejection 70 dB min @ 3400-3580MHz
70 dB min @ 3580 MHz
60 dB min @ 3600 MHz
60 dB min @ 3640 MHz
55 dB min @ 3660 MHz
50 dB min @ 3680 MHz
20 dB min @ 4250 MHz
MECHANICAL SPECIFICATIONS
Dimensions 150x98.4x69.9 mm
Weight 0.77 kg
Packing Size 220x170x130 mm
Waveguide Flange CPR-229G (input), CPR-229F (output)
